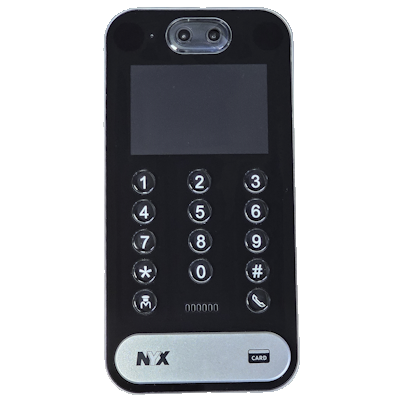

IP View KP+ Door Station User Manual (Simplified Version)

---

🔐 Safety Instructions

Before using your IP View KP+ door station, please read this guide carefully and keep it for future reference.

⚠️ Safety Symbols

Symbol	Meaning
⚠️ Warning	May cause injury if not followed properly
⚙️ Caution	May cause device damage or data loss
💡 Note	Helpful tips and extra information

---

📖 About This Manual

• This guide covers multiple models. Images and examples may differ slightly from your device.
• Always follow the instructions to use the device safely and correctly.
• The product is provided “as is” and may change without notice.
• All trademarks and brand names belong to their respective owners.

---

🚫 Legal Use Only

• Do not use this product for illegal activities.
• Respect others' privacy and personal data.
• Do not tamper with or hack the device.

---

⚡ Electrical Safety

• Use a certified power supply: 12V/2A or PoE 48V/350mA.
• Do not use above 2000m altitude or in temperatures over 60°C.
• Ground the device to avoid electric shock.
• Wear anti-static gloves when handling internal parts.

---

🌍 Environmental Guidelines

• Avoid strong vibrations, water, or extreme temperatures.
• Do not point the camera directly at bright lights (like the sun).
• Keep away from heat sources and ensure good ventilation.
• Avoid placing reflective surfaces near the camera lens.

---

🧼 Maintenance Tips

• No user-serviceable parts inside—contact support if needed.
• Power off before cleaning.
• Use a soft, dry cloth. Avoid touching the lens directly.
• Clean the dome cover gently with a soft brush or cloth.

---

🔒 Privacy Protection

• Post clear signs if installing in public areas.
• Protect personal data (e.g., faces, license plates).
• Set up access controls and provide contact info if required.

---

🌐 Cybersecurity Tips

• Use strong passwords (8+ characters, mix of letters/numbers).
• Change passwords every 90 days.
• Avoid using default ports (e.g., HTTP 80, HTTPS 443).
• Don’t expose the device to the public internet unless necessary.
• Enable HTTPS and use IP filtering (allow/block lists).
• Disable UPnP if not needed.
• Check logs regularly for unauthorized access.

---

🔧 Main Features

• Full HD Video: 2MP resolution (1920×1080)
• Smart Compression: Supports H.265+/H.265/H.264+/H.264/MJPEG
• Face Recognition: Works from 0.3m to 2m distance
• Anti-Spoofing: Detects real faces vs. photos or masks
• Image Enhancements: Includes 3D DNR, WDR, BLC, HLC, and Defog
• Multiple Unlock Methods:
  • Face recognition
  • Card swipe
  • PIN code
  • Mobile app
• Remote Access: View and control via app, web browser, or tablet
• Tamper Alerts: Sends alarms if the device is damaged or the door is forced open
• Wi-Fi & RS485 Support: Connects via 2.4GHz Wi-Fi or wired network
• Smart Analytics: Detects video issues, captures faces, and compares them

---

👁️ Live View via Web Browser

Once you log in to the IP View KP+ door station through your browser, you’ll see the Live View screen.

🖥️ What You Can Do:

Icon	Function
🔍	Zoom in/out
🖼️	Fit to screen or original size
🎥	Start/stop live video
🎙️	Start/stop two-way audio
🔊	Enable/disable audio
📸	Take a snapshot
⏺️	Start/stop local recording
🔓	Unlock the door
⚠️	View smart alarm indicators (e.g., tampering, motion, face detection)

💡 Some features (like local recording) may not work in plug-in-free browsers.

---

⚙️ Web Configuration

Click Config in the web interface to access all settings.

1. Face Recognition Settings

🧠 Face Comparison

• Liveness Detection: Prevents spoofing with photos or videos.
• Save Options:
  • Save full image
  • Save face only
• Snapshot Interval: Set how often to capture faces (e.g., every 4 seconds).
• Alarm Triggers:
  • Save to SD card
  • Send email or upload to FTP
  • Trigger external alarms

🎯 Face Matching

• Similarity Threshold: Set how close a match must be to trigger an alert.
• Deduplication: Avoids repeated alerts for the same person.
• Alarm Area: Draw a detection zone on the screen.
• Face Size: Set minimum and maximum face size for detection.

---

2. Face Database Management

You can add faces in four ways:

1. Manually: Upload a photo and enter details (name, ID, etc.).
2. Batch Upload: Use a CSV file and image folder.
3. Face Album Tool: Use the dedicated software.
4. Live Capture: Add faces directly from live view.

🔐 You can assign access levels (e.g., visitor, resident, admin) and unlock methods (face, card, PIN, or combinations).

---

3. Face Match View

• View real-time face captures and match results.
• Click a face to see detailed info or add it to the database.



---

📞 Intercom Features

1. Calling a Resident

You can call a resident in two ways:

• Manual Dial: Press any number on the keypad, enter the room number, then press the 📞 button.
• One-Touch Call: Press the 📞 button directly (if pre-configured to a specific room).

🔧 To set up one-touch calling:
Go to Config > Intercom, enable “Press button to call indoor station”, enter the room number, and click Save.

📌 Make sure the IP View KP+ door station is added to the indoor station first (see Appendix 1 for setup).

---

2. Calling the Control Platform

• Press the 📞 button to call the central platform.
• Enable this in:
  Config > Intercom > Enable "Press button to call platform"

---

3. Calling the Mobile App

Option A: Call the Admin Account

• Press the 📞 button to call the admin’s mobile app.
• Enable this in:
  Config > Intercom > Enable "Press button to call APP"

Option B: Call a Specific Resident

• Enter the room number on the keypad and press 📞.
• Admin must:
  1. Add the device to the app using the QR code and security code.
  2. Go to Buildings & Residents in the app.
  3. Add building and room numbers.
  4. Link each room to the resident’s app account.

📱 When a visitor calls, the app, indoor station, and platform will all ring. The first one to answer takes the call.

---

4. Contact List Setup

To allow visitors to search for residents:

1. Add people to the face database with their room and floor numbers.
2. Go to:
   Config > Intercom > Contacts
3. Select a person and click Add.

Visitors can then press the * key to browse the contact list on the IP View KP+ door station.

---

🔓 Door Unlocking Options

1. Unlock with Super PIN Code

• Enter the code on the keypad followed by #.
• Set this code in:
  Config > Access Control > Door Lock > PIN Code Setting

---

2. Unlock with Face Recognition

• If the unlock mode is set to Face Only, the door opens after a successful face match.

---

3. Unlock with Card Swipe

• If the unlock mode is Card Only, swipe a registered card to open the door.

---

4. Combination Unlock Modes

• Face + PIN: Face match first, then enter PIN code.
• Face + Card: Face match first, then swipe card.
• Face or Card: Either method will unlock the door.

🔧 Set these modes when adding users to the face database.

---

5. Unlock via Web Interface

• In the live view screen, click the 🔓 icon to open the door remotely.

---

6. Unlock via Mobile App

• In the app’s live view, tap the screen to reveal the unlock icon.
• Tap 🔓 to open the door.

---

🛡️ Access Control System Settings

1. Local Settings

Go to:
Config > Access Control > Access Control System Config

Setting	Description
Language	Choose the display language
Voice Prompt	Select default or custom voice
Screen Sleep Time	Set how long the screen stays on without activity
Keypad Backlight	Auto / Manual / Off
Volume	Adjust voice prompt volume
Screen Brightness	Set screen brightness (150–255)

🎙️ Custom Voice Prompts

1. Go to the Custom Voice tab.
2. Select the voice prompt you want to replace.
3. Click Browse to upload your audio file.
4. Click Upload and rename it if needed.
5. Preview your voice prompt using the Listen button.

---

2. Door Lock Settings

Go to:
Config > Access Control > Door Lock

Setting	Description
Lock Name	Name your door lock (e.g., Front Gate)
Unlocking Group	Choose who can unlock (e.g., residents, visitors)
Unlock Delay	Time before the door unlocks (0–10 seconds)
Unlock Duration	How long the door stays unlocked (0–10 seconds)
Lock Type	Auto / Normally Open (NO) / Normally Closed (NC)
Alarm Linkage	Choose what happens when an alarm is triggered
Schedule Settings	Set times when the door should auto-lock/unlock

🗓️ You can set weekly or holiday-specific schedules.

---

3. Door Contact Settings

Go to:
Config > Access Control > Door Contact Setting

Setting	Description
Input ID	Choose door contact 1 or 2
Input Type	Normally Open (NO) or Normally Closed (NC)
Unlock Delay	Time allowed before door must close
Alarm Delay	Time before alarm triggers if door contact fails

You can also enable:

• Audio Alarm
• Snapshot or Video Recording
• Email or FTP Alerts

---

4. Wiegand Settings

Go to:
Config > Access Control > Wiegand Config

Setting	Description
Direction	Input (for card reader) or Output (for controller)
Mode	Choose bit format (e.g., 26bit, 34bit, etc.)

---

5. Tampering Alarm

Go to:
Config > Access Control > Tampering Alarm Setting

• Enable this to trigger alarms if the device is tampered with.
• You can also enable audio alerts, snapshots, and email/FTP notifications.

---

6. Card Reader Settings

• Choose card type: EM or IC.
• For IC cards, you can enable:
  • Anti-cloning
  • Encryption (MI, CPU, DESFire)

🔐 You’ll need a compatible card enroller for encryption.

---

7. RS485 Settings

Go to:
Config > Access Control > RS485

• Connect external RS485 devices like card readers or controllers.
• Choose the correct device type.
• Default settings are usually fine unless specified by the device.

---

8. Elevator Control (Web Relay Only)

1. Add resident info (room and floor) in the face database.
2. Go to:
   Config > Access Control > Elevator Config
3. Enable elevator control and add floor settings.
4. When a resident unlocks the door, the system sends a command to the elevator to allow access to their floor.
