GS1010P 1.0 8 Port GB POE Switch

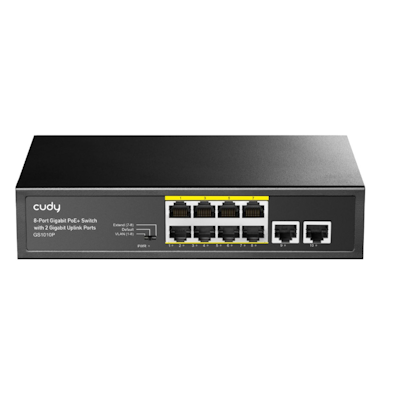

GS1010P 1.0 – 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports

General Specifications

• Model Version: GS1010P 1.0
• Form Factor: Desktop / Rack-Mount
• Casing Material: Metal
• Dimensions: 220 × 150 × 44 mm (8.66 × 5.91 × 1.73 inches)
• Weight: 630 g (Product), 936 g (Retail Package)

Ports & Interfaces

• PoE+ Ethernet Ports: 8 × Gigabit Ethernet (GbE)
• Uplink Ethernet Ports: 2 × GbE
• Extend Mode Ports: #7 and #8
• VLAN Mode Ports: #1 to #8
• Physical Buttons: DIP Switch for VLAN/Default/Extend modes

Performance

• Protocols Supported:
  • IEEE 802.3i (10 Mbps)
  • IEEE 802.3u (100 Mbps)
  • IEEE 802.3ab (1 Gbps)
  • IEEE 802.3x (Flow Control)
  • IEEE 802.3af / 802.3at (PoE)
• Max Forwarding Rate: 14.88 Mpps
• Switching Capacity: 20 Gbps
• MAC Address Table: 2048 entries
• Jumbo Frame Support: 2 KB
• Packet Buffer: 448 Kbit

PoE Features

• PoE Standards: IEEE 802.3af / 802.3at Mode A
• Total Power Budget: 120W
• PoE Watchdog: Available under VLAN or Extend modes

Power

• Input: AC 100–240V, 50/60Hz
• Idle Power Consumption: 10W
• Max Power Consumption: 120W
• Grounding: Three-Prong Plug

LED Indicators

• Per Port: Power, Speed/Link/Activity, PoE Status

Environmental Conditions

• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 5% to 95% (non-condensing)

Transmission Distance

• Standard Mode: Up to 100 meters (Cat 5e or higher)
• Extend Mode: Up to 250 meters on ports #7 and #8
