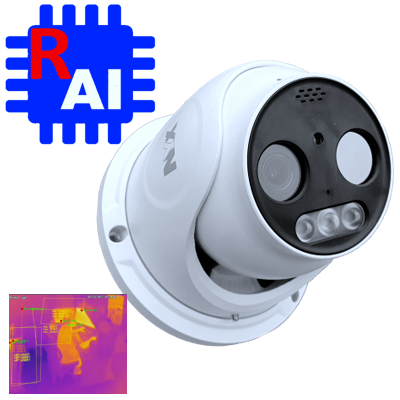

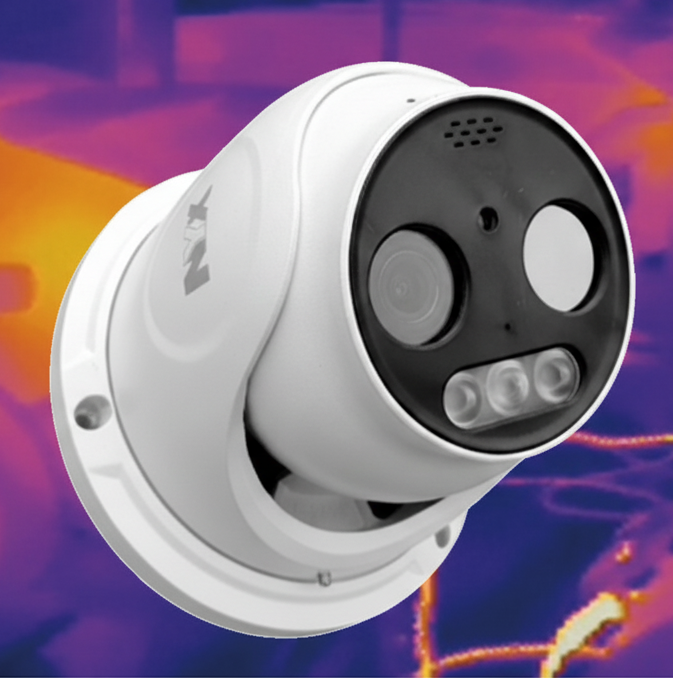

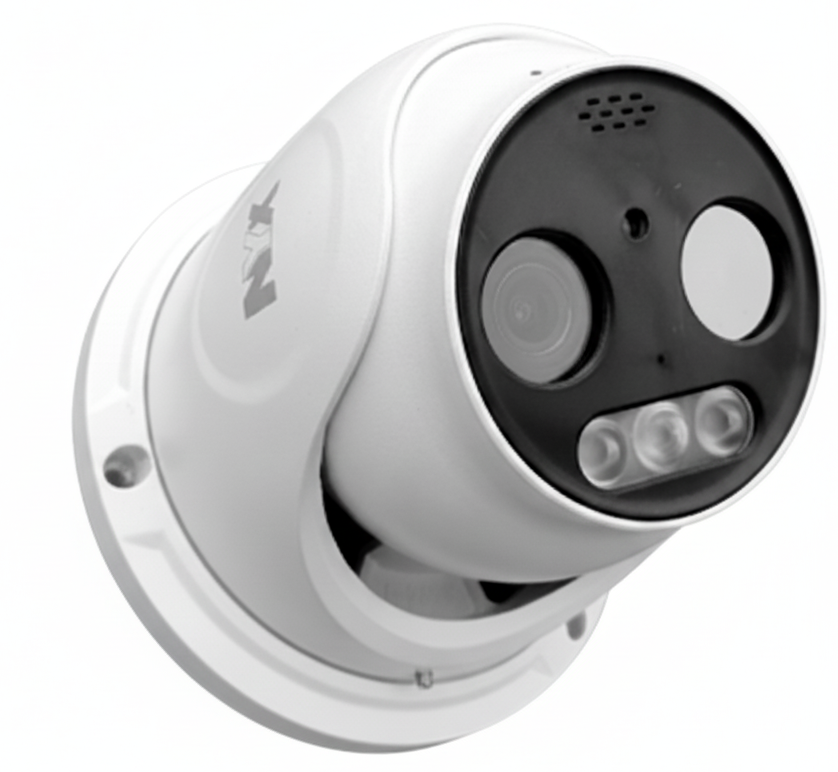

NYX VT432 THERMAL

NDAA NYX Thermal / Optical Network Turret Camera

Two Cameras in One

Experience advanced surveillance with dual imaging technology. The NYX turret camera merges thermal and optical images for enhanced visibility and intelligent analytics.

🔥 Thermal Features

• Resolution: 256×192, 12µm sensor
• NETD: ≤50mK (@25°C, F#=1.0)
• Temperature Range: -20°C to 150°C
• Dual Image Fusion: Thermal + Optical
• Multi-Palette Options: White hot, black hot, iron oxide, etc.
• Smart Analytics:
  • Region intrusion detection
  • Line crossing detection
  • Target counting
• Alarms & Warnings:
  • Sound and light warning
  • Temperature exception alarm
  • Fire detection

📷 Optical Features

• Resolution: 5MP (2592 × 1944) @30fps
• Lens:  4mm Fixed Lens
• Night Vision: IR range up to 30m
• Day/Night: ICR auto switch
• Image Enhancements:
  • 3D DNR
  • True WDR (120dB)
  • HLC, BLC, Smart IR
  • Distortion correction
  • ROI (Region of Interest)
• Smart Analytics:
  • Intrusion detection (human/vehicle)
  • Line crossing detection (human/vehicle)
  • Face capture
  • Classification: human, motor vehicle, non-motor vehicle

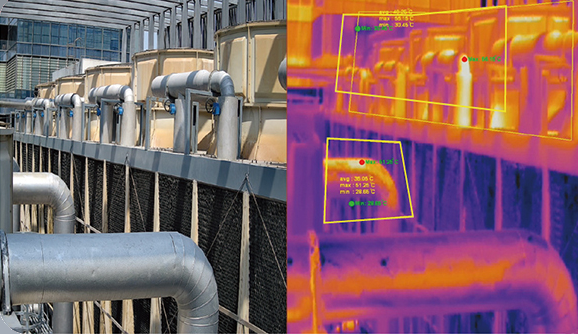

🌡️ Temperature Measurement

•
  Rules: Up to 10 (point, line, region)
• Range: -20°C to 150°C

🚧 Perimeter Protection

• Region intrusion
• Entrance/exit detection
• Line crossing detection
• Human/vehicle classification

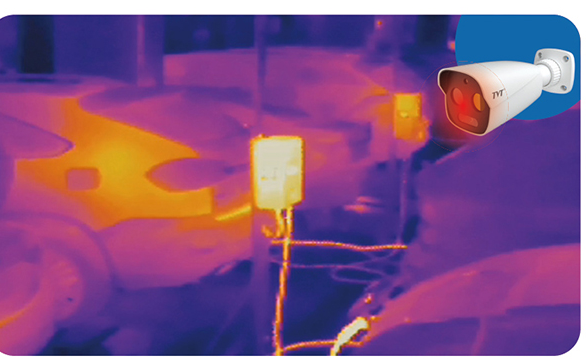

🚨 Exception Alarms

• Sound & light warning
• Temperature exception alarm

• Fire detection

🌦️ Environmental Adaptability

Designed to perform in harsh conditions including:

• Rain
• Fog
• Night
• Bushes

⚠️ Important Note

This is a network camera and must be set up via network configuration.
It will not function through plug-and-play ports on an NVR.
